Magnetization Options

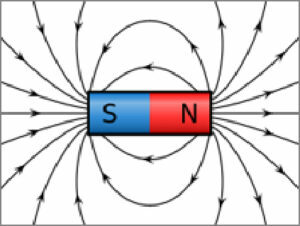

A Magnetic field is an invisible flux moving from one end of the magnet to the other, as shown in Figure 1. The flux consists of moving or spinning electrically charged particles invisible to the eye. Neodymium magnets do not spend their energy like a battery. They will retain their power over hundreds of years.

magnetic field
Figure 1

Magnets have potential energy which means that they have the ability to conserve energy. The magnet will display or release some of its conserved energy when pulling towards or attaching to something then conserve or store the energy that the user exerts when pulling it off.

When two magnets are placed near each other, the same poles repel each other while opposites attract. A north pole and south pole will be attracted to each other. Two north poles will repel each other, and two south poles will repel each other.

magnetic attraction
Figure 2

How Your Magnets Can Be Magnetized

Cylinder, Disc, and Rod Magnets

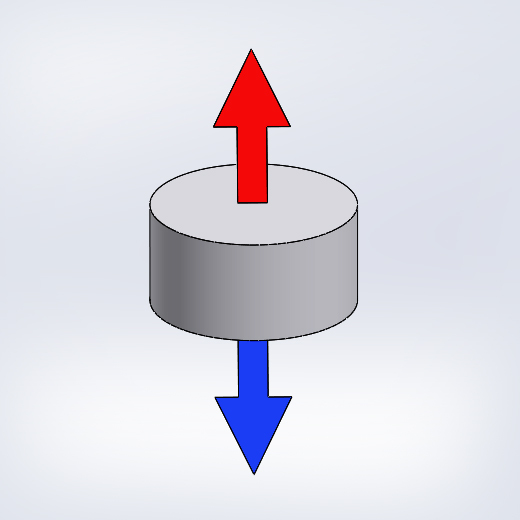

Axial Disc

Axially Magnetized

Magnetized through the length or thickness. The strongest points are on the flat faces.

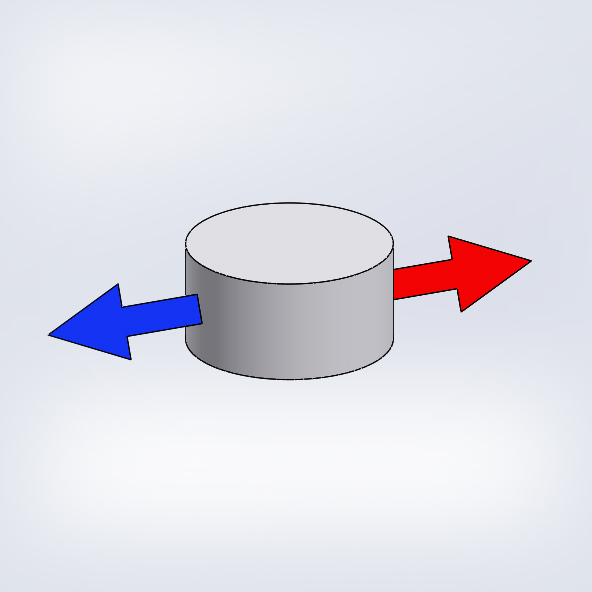

Diametrical Disc

Diametrically Magnetized

Magnetized through the diameter. The strongest points are on the curved surface.

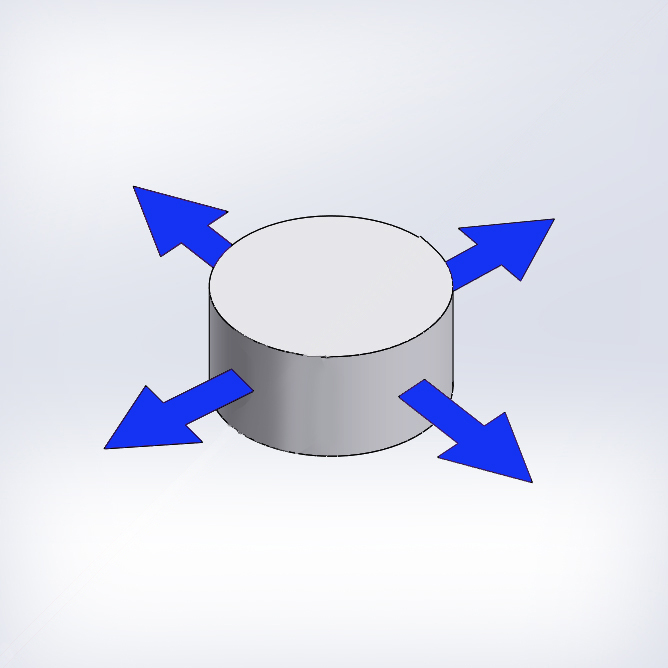

Radial Disc

Radially Magnetized

Magnetized on the diameter. These magnets consist of all north, all south, or alternating polarities.

Cubes and Rectangle Magnets

Rectangle Thickness

Through the Thickness

Magnetized through the length or thickness. The strongest points are on the ends of the thickness. Thickness is usually the smallest dimension of a rectangle.

Rectangle Width

Through the Width

Magnetized through the width. The strongest points are on the ends of the width. The width is usually the 2nd largest dimension of a rectangle.

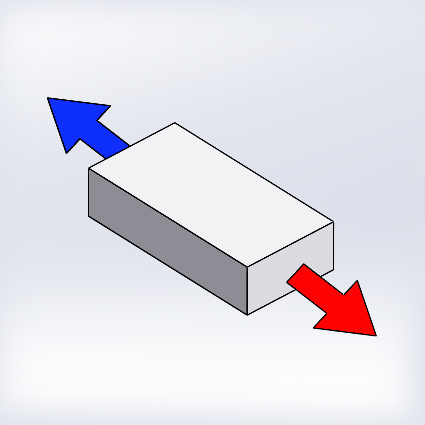

Through the Length

Magnetized through the length. The strongest points are on the ends of the length. The length is usually the largest dimension of the rectangle.

Arc Magnets

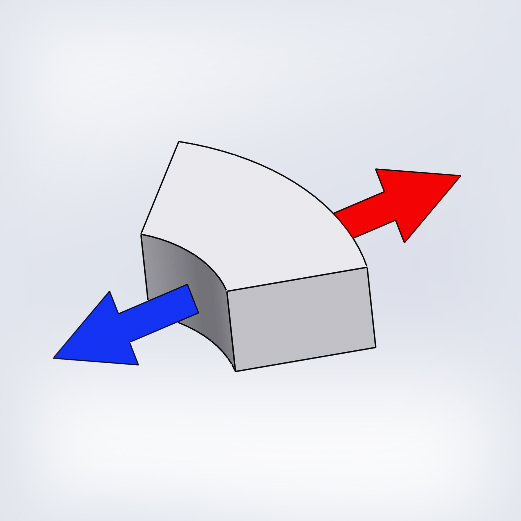

Diametrical Arc

Diametrically Magnetized Arcs

Magnetized from the Inside Radius (r) through the Outside Radius (R). The strongest points are on the curved surfaces. Not a stocked item but available upon request.

Chord Arc

Chord Magnetized Arcs

Magnetized Across the Arc. Strongest points are on the flat angled faces. Not a stocked item but available upon request

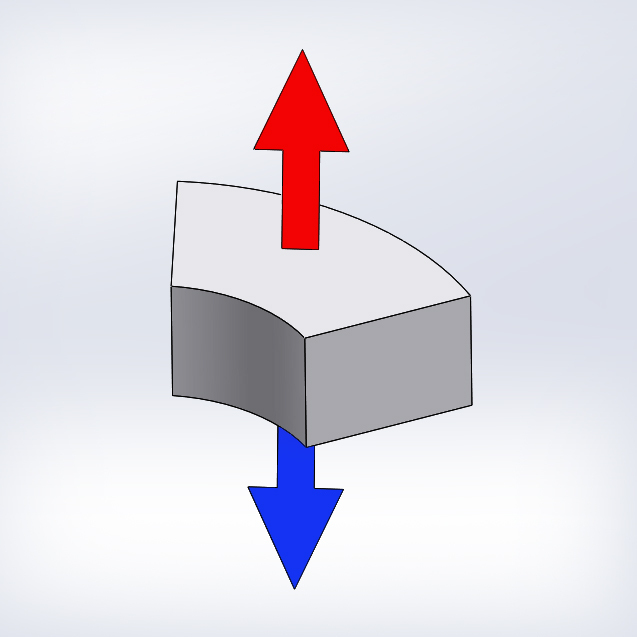

Axial Arc

Axially Magnetized Arc

Magnetized through the thickness. The strongest points are on the flat faces. Not a stocked item but available upon request.

Special Magnets

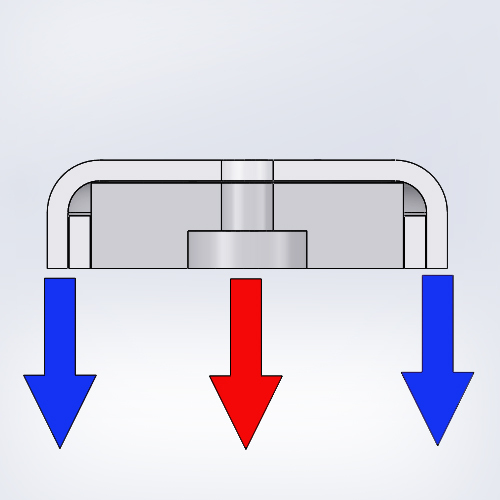

Cup Magnet

Cup or Pot Magnets

A Cup or Pot is an axial magnet inside of a stainless steel shell. This shell absorbs the magnetic field on one side and forces it toward the opposite direction, creating a double pull at one end of the magnet. The Stainless steel shell doubles as a very tough layer of protection from harsh environments.

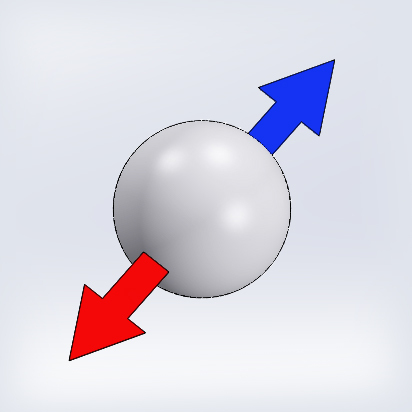

Sphere Magnet

Sphere or Ball Magnets

Axially magnetized through the diameter (Like the Earth). The strongest points are on opposite ends.

Polymagnets

The Polymagnet® Catalog is a library of pre-engineered Polymagnet products. Rather than simply repel or attract, Polymagnets have unique properties including improved strength and new magnetic interactions such as rotational alignment, twist to release, and many more unique functions. The catalog contains a wide variety of polymagnet functions in a broad range of sizes and shapes, all of which are available for purchase now.
