CUPM Series (M Threaded Stud)
These Cup Magnets, also called Pot Magnets or Pot, have a male threaded stud and are designed to be mounted with a nut or screwed into a threaded hole. The steel housing protects the magnet and focuses its magnetism on one side, increasing its strength when attaching directly to flat magnetic surfaces. They are compatible with rubber boots for further protection and anti-slip properties.

Additional Product Information for CUPM Series (M Threaded Stud)
These magnet assemblies have a male threaded stud and are affixed inside a robust steel housing, and are designed to be mounted with a nut, or screwed into a threaded hole.
Often also referred to as POT magnets or CUP Magnets, due to the way they are assembled. The outward facing side of the Neodymium Magnet has a polarity that faces North, and due to the magnetically conductive nature of the steel cup, it causes the outer portion of the steel cup to have a South facing pole.
The CUPM magnets have a male threaded stud.
Protective rubber boots are also available for further protection, and anti-slip properties.
Neodymium Magnets (NdFeB)
Neodymium magnets (NdFeB) are the strongest permanent magnet material commercially available.
Applications - What can magnets be used for or used in?
- Magnetic Knife Holder
- Material Separation
- Door Latches and Locks
- Magnetic Couplings
- Magnetic Bearings
- Magnetic Fasteners
- Magnetic Triggers
- Wind Turbines
- Medical Devices
- Magnetic Stir Bars
- Smartphone Accessories
- Industrial Machinery
Why buy from Amazing Magnets?
- Large, in-stock inventory of Strong, licensed NdFeB magnets available
- Responsive customer service
- Same day shipping if order is placed before 3pm CST
- Engineering and Technical support services available
- Custom magnets and magnetic assembly services
FAQs:
Blog:
Need additional assistance? Need a Quote?
Email: customercare@amazingmagnets.com
Phone: 512-678-2940
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
CUPM125-1250-N52
- Grade: N52
- Plating: Ni-Cu-Ni
- Power: 61 lb
$5.26per pcSold in quantites of 1
Neodymium Cup Magnet With a Male Threaded Stud | Diameter: 1.25" | Thickness: 0.125" | Thread Type: #6-32 | Grade N52 -
CUPF315H-354-8X32
- Diameter: 1"
- Thickness: 0.315"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 46.8 lb
$3.80per pcSold in quantites of 1
1" Dia. x 0.315" Thick Steel cup encased magnet with #8-32 female threaded post, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM500P-616-B20-N42
- Diameter: 2"
- Thickness: 1/2"
- Grade: N42
- Plating: Ni-Cu-Ni
$19.43per pcSold in quantites of 1
2" Dia. x 0.5" Thick Steel cup encased magnet with 1/4"-20 x 1.116" male threaded stud, Licensed NdFeB, Grade N42, Ni-Cu-Ni plated. -
CUPM625
- Diameter: 5/8"
- Thickness: 0.512"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 21.11 lb
$2.29per pcSold in quantites of 10
0.625" Dia. x 0.197" Thick Steel cup encased magnet with #8-32 x 0.315" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM750
- Diameter: 3/4"
- Thickness: 0.512"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 29.86 lb
$2.75per pcSold in quantites of 10
0.75" Dia. x 0.275" Thick Steel cup encased magnet with #8-32 x 0.237" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM188E-327-4X40-N42
- Diameter: 5/8"
- Thickness: 0.515"
- Grade: N42
- Plating: Ni-Cu-Ni
- Power: 6 lb
$2.41per pcSold in quantites of 1
0.625" Dia. x 0.188" Thick Steel cup encased magnet with #4-40 x 0.327" male threaded stud, Licensed NdFeB, Grade N42, Ni-Cu-Ni plated. -
CUPM315J-240-B20
- Diameter: 1-1/4"
- Thickness: 0.555"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 88.1 lb
$5.82per pcSold in quantites of 1
1.25" Dia. x 0.315" Thick Steel cup encased magnet with 1/4"-20 x 0.24" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM1000
- Diameter: 1"
- Thickness: 0.669"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 43.61 lb
$4.08per pcSold in quantites of 5
1" Dia. x 0.315" Thick Steel cup encased magnet with #10-32 x 0.354" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM250H-425-8X32-N42
- Diameter: 1"
- Thickness: 0.675"
- Grade: N42
- Plating: Ni-Cu-Ni
- Power: 53 lb
$4.20per pcSold in quantites of 1
1" Dia. x 0.25" Thick Steel cup encased magnet with #8-32 UNC 2A x 0.675" male threaded stud, Licensed NdFeB, Grade N42, Ni-Cu-Ni plated. -
CUPM375L-395-10X32-N42
- Diameter: 1-1/2"
- Thickness: 0.74"
- Grade: N42
- Plating: Ni-Cu-Ni
$13.20per pcSold in quantites of 1
1.5" Dia. x 0.375" Thick Steel cup encased magnet with #10-32 x 0.395" male threaded stud, Licensed NdFeB, Grade N42, Ni-Cu-Ni plated. -

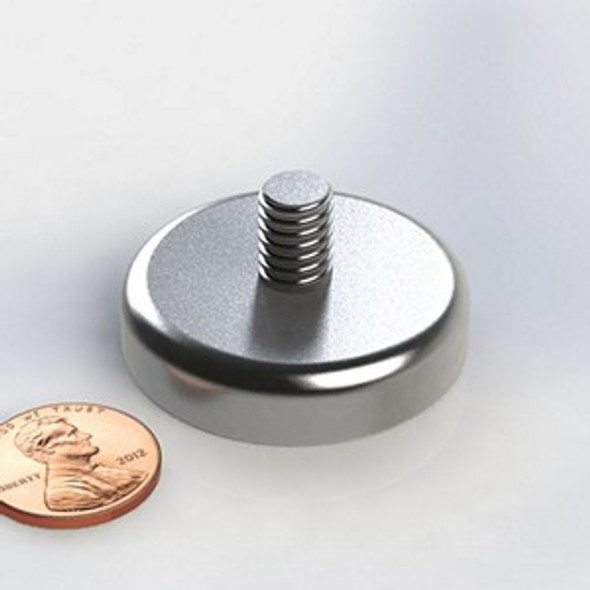

CUPM1500
- Diameter: 1-1/2"
- Thickness: 0.787"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 126.6 lb
$8.72per pcSold in quantites of 2
1.5" Dia. x 0.354" Thick Steel cup encased magnet with 5/16"-18 x 0.433" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated. -
CUPM1500-1000
- Diameter: 1-1/2"
- Thickness: 0.787"
- Grade: N40
- Plating: Ni-Cu-Ni
- Power: 126.6 lb
$6.35per pcSold in quantites of 2
1.5" Dia. x 0.354" Thick Steel cup encased magnet with 5/16"-18 x 0.433" male threaded stud, Licensed NdFeB, Grade N40, Ni-Cu-Ni plated.
